RH CORES

All employees of Encore Techmology Co., Ltd. provides high quality service to electronic industry, based on company's business philosophy of perseverence, innovation and responsibility.

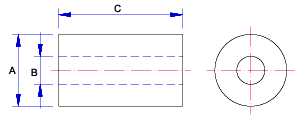

ITEM Mechanical Dimension A B C RH2.03*0.8*3.2 2.03±0.15 0.80±0.15 3.20±0.2 RH2.54*1.27*4 2.54±0.15 1.27±0.15 4.00±0.2 RH2.54*1.27*5 2.54±0.15 1.27±0.15 5.00±0.2 RH2.54*1.27*6 2.54±0.15 1.27±0.15 6.00±0.2 RH2.79*1.19*3 2.79±0.15 1.19±0.15 3.00±0.2 RH3.05*0.9*3 3.05±0.15 0.90±0.15 3.00±0.2 RH3.05*1.27*3.2 3.05±0.15 1.27±0.15 3.20±0.2 RH3.5*0.9*3 3.50±0.15 0.90±0.15 3.00±0.2 RH3.5*0.9*4 3.50±0.15 0.90±0.15 4.00±0.2 RH3.5*0.9*5 3.50±0.15 0.90±0.15 5.00±0.2 RH3.5*0.9*6 3.50±0.15 0.90±0.15 6.00±0.2 RH3.5*1*3 3.50±0.10 1.00±0.10 3.00±0.1 RH3.5*1.27*3.2 3.50±0.15 1.27±0.15 3.20±0.2 RH3.5*1.3*3 3.50±0.15 1.30±0.15 3.00±0.2 RH3.5*1.3*3.5 3.50±0.15 1.30±0.15 3.50±0.2 RH3.5*1.3*4 3.50±0.15 1.30±0.15 4.00±0.2 RH3.5*1.3*5 3.50±0.15 1.30±0.15 5.00±0.2 RH3.5*1.3*6 3.50±0.15 1.30±0.15 6.00±0.2 RH4*2*20 4.00±0.15 2.00±0.15 20.0±0.3 RH4.57*2.16*10 4.57±0.15 2.16±0.15 10.0±0.3 RH4.65*0.61*3.18 4.65±0.23 0.61±0.13 3.18±0.2 RH5*3*20 5.00±0.15 3.00±0.15 20.0±0.3 RH5.08*2.54*6.35 5.08±0.15 2.54±0.15 6.35±0.2 RH5.33*1.32*10.16 5.33±0.15 1.32±0.15 10.16±0.3 RH6*4.2*10 6.00±0.15 4.20±0.15 10.0±0.3 RH6.35*1.9*10 6.35±0.15 1.90±0.15 10.0±0.3 RH7.6*2.75*10 7.60±0.15 2.75±0.15 10.0±0.3 RH7.6*3.18*10 7.60±0.15 3.18±0.15 10.0±0.3 RH7.92*1.27*6.35 7.92±0.15 1.27±0.15 6.35±0.2 RH8*4*21 8.00±0.20 4±0.25 21.0±0.3 RH9.4*3.18*12.7 9.40±0.15 3.18±0.15 12.7±0.3
