High frequency up to 5MHz power material

為因應高頻大電流市場需求與客戶需要(yào / yāo)，大冶電子生產之 NP9 Mn-Zn Power 材，
專應用於高頻之 Planar Transformer 或是大電流電感器，
即本公司之 FB 或 TFB Micro GAP 之產品系列。



Features：
1. High frequency up to 5MHz power material.
2. Micro GAP design compare with two piece of Ferrite plate combination it has better reliability.
3. Excellence Inductance temperature stability from -40℃ to 125℃.
4. It can get various AL values and IDC with adjusting the GAP size and core length.

Applications：
• Multi-phase regulators
• Voltage Regulator Module (VRM)
• Desktop and server VRMs and EVRDs
• Data networking and storage systems
• Notebook regulators
• Graphics cards and battery power systems
• Point-of-load modules
• DCR sensing

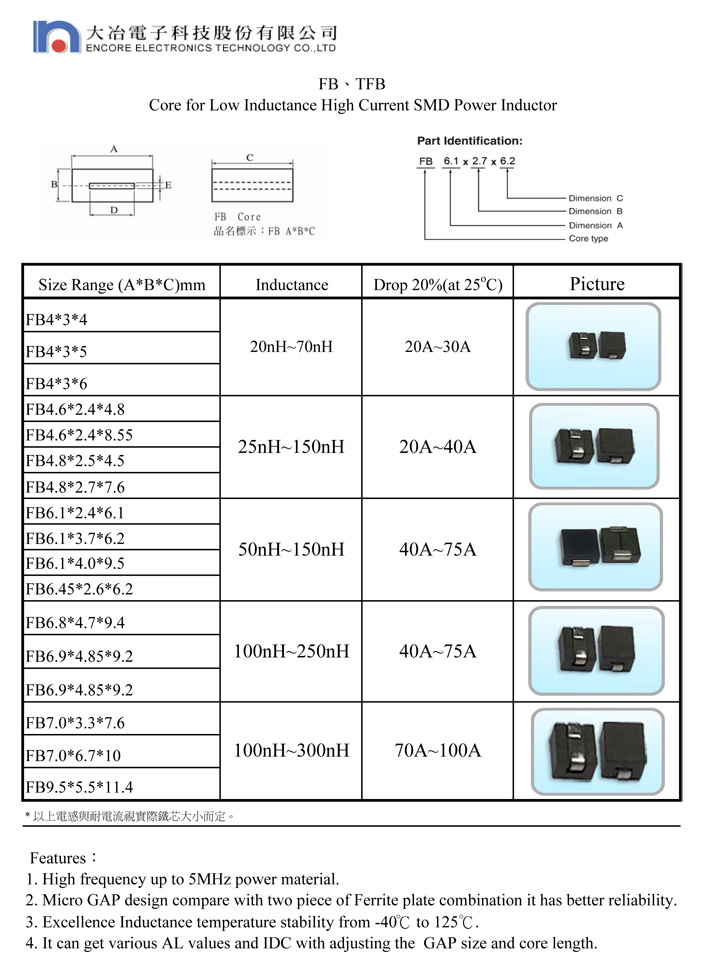

High Current Product

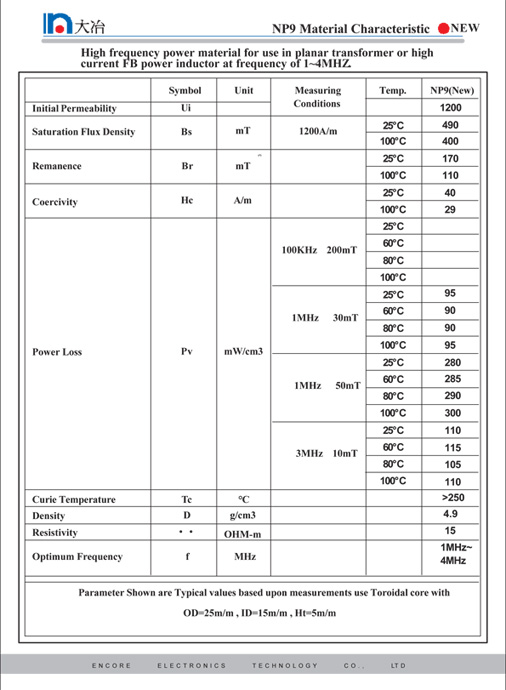

New NP9 材質介紹

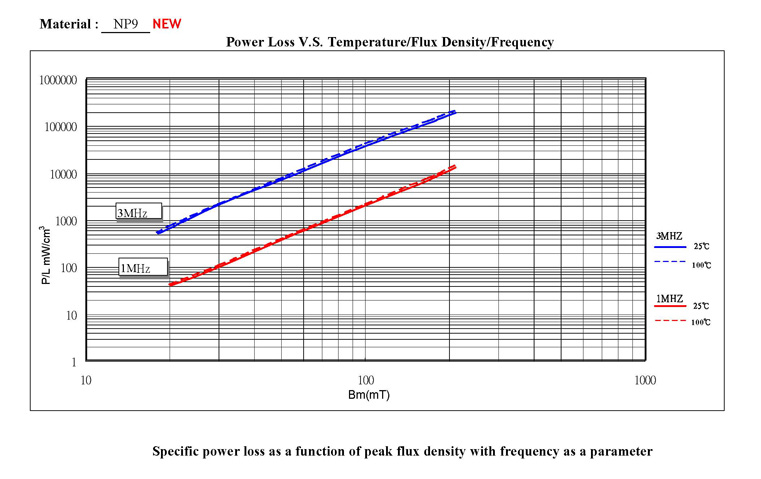

New NP9 材質曲線
